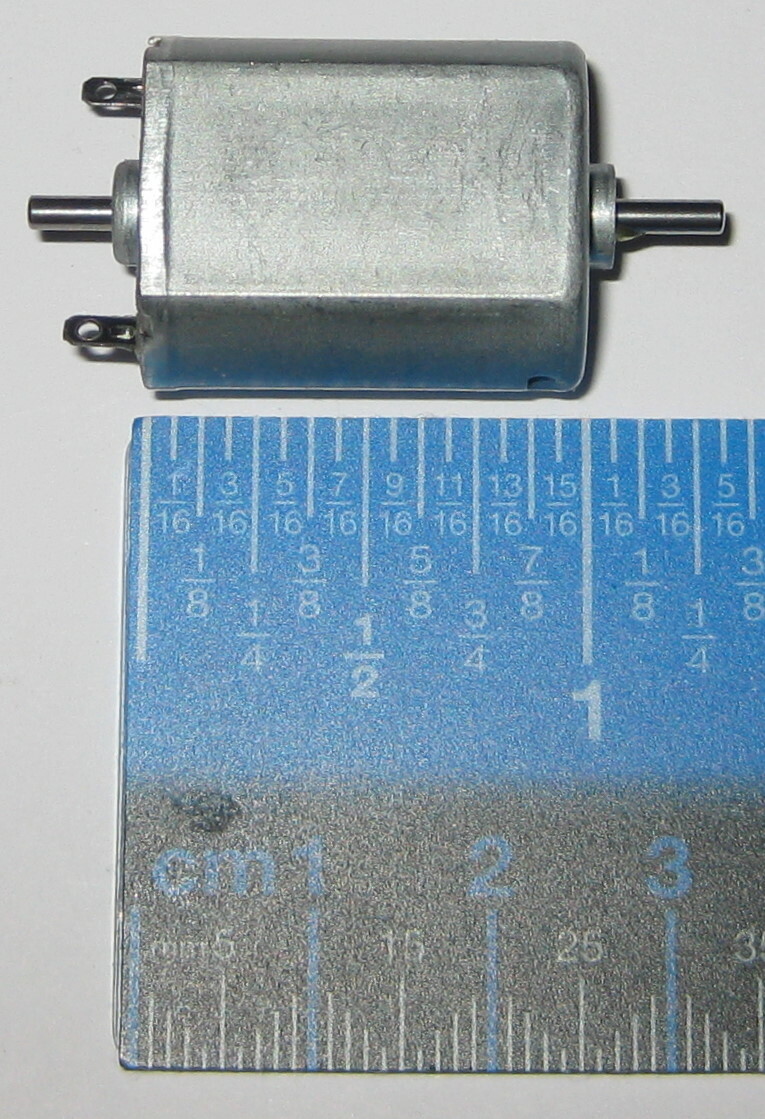

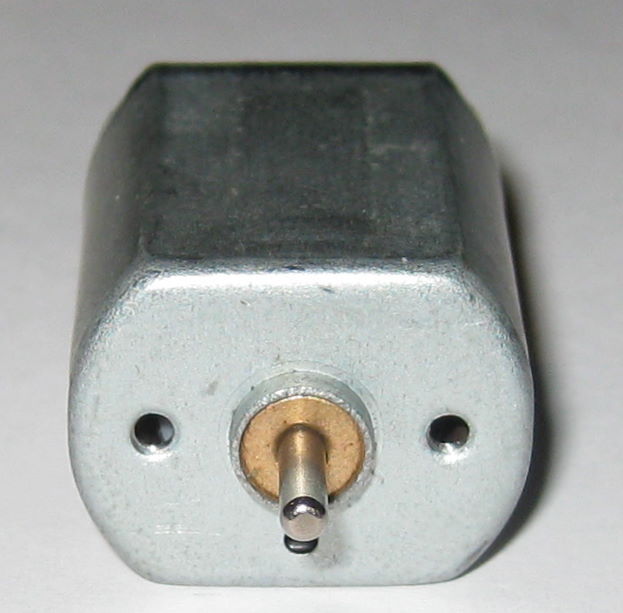

Nichibo FF-130RH Motor – 3 VDC – CD / DVD / Shaver Motor – 4280 RPM Low Current
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 0.17 A |
| MPN | FF-130RH |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Straight |
| Nominal Rated Input Voltage | 3 V |
| Model | FF-130RH |
| Starting/Locked Rotor Torque | 28 g/cm |
| Reversible/Non-Reversible | Reversible |
| Rated/Full-Load Torque | 5.8 g/cm |
| Shaft Diameter | 2.0 mm |
| Base RPM | 5400 RPM |
| Brand | Nichibo |
Nichibo FF-130RH Motor - 3 VDC - CD / DVD / Shaver Motor Electric DC motor manufactured by Nichibo Model: FF-130RH-15210 Operates on 3 VDC nominal Recommended operating voltage range 1 VDC to 4 VDC Motor performance at 3V: No load speed: 5,400 RPM No load current: 45 mA Stall current: 650 mA Stall torque output: 28 g/cm (2.74 mN-m) Full load current: 170 mA Full load speed: 4,280 RPM Full load torque output: 5.8 g/cm (.57 mN-m) Can be operated in either direction, simply reverse power supply polarity Dimensions (not including shaft): 25 mm long x 20 mm x 15 mm Dual shaft configuration Shaft dimensions: 6.0 mm long x 2.0 mm diameter Solder terminals for easy connection Weight: .8 oz. (24 g) Popular motor used in CD/DVD-ROM drives Flat can motor can also be used for model train applications, especially medium and large locomotives
