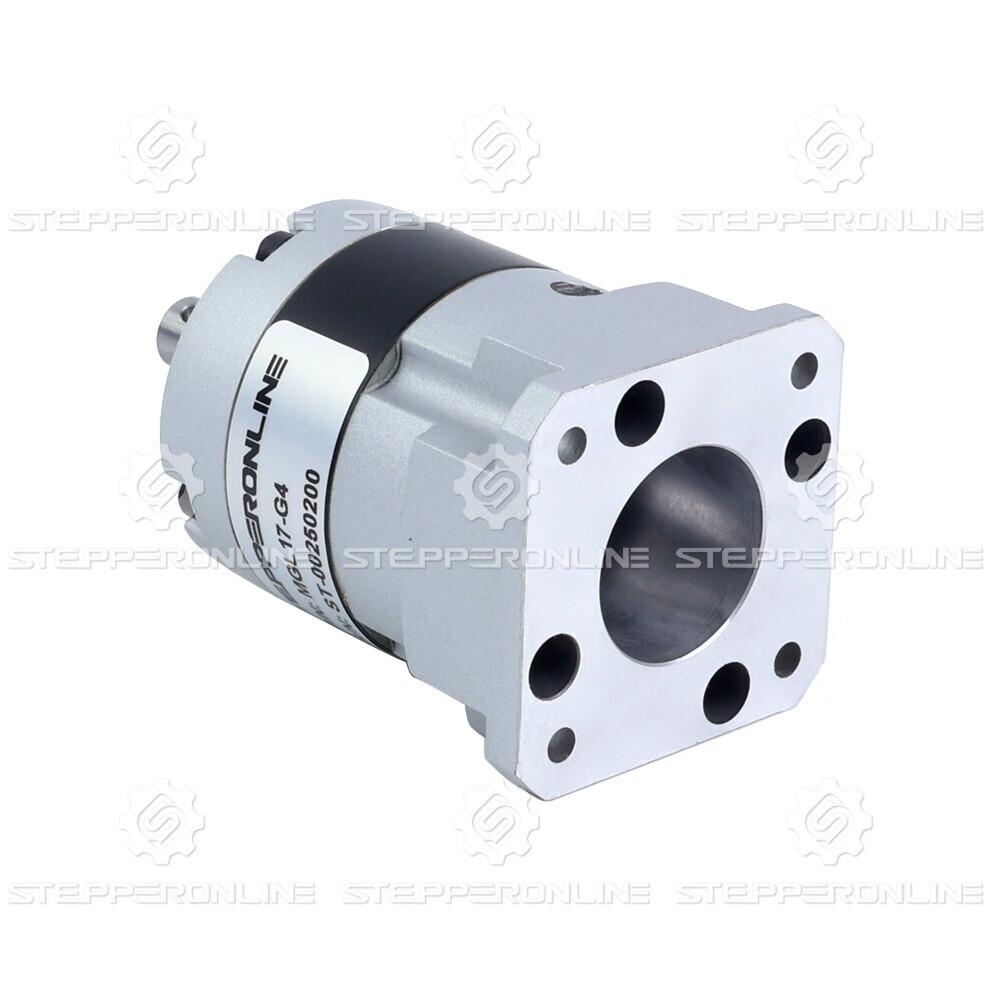

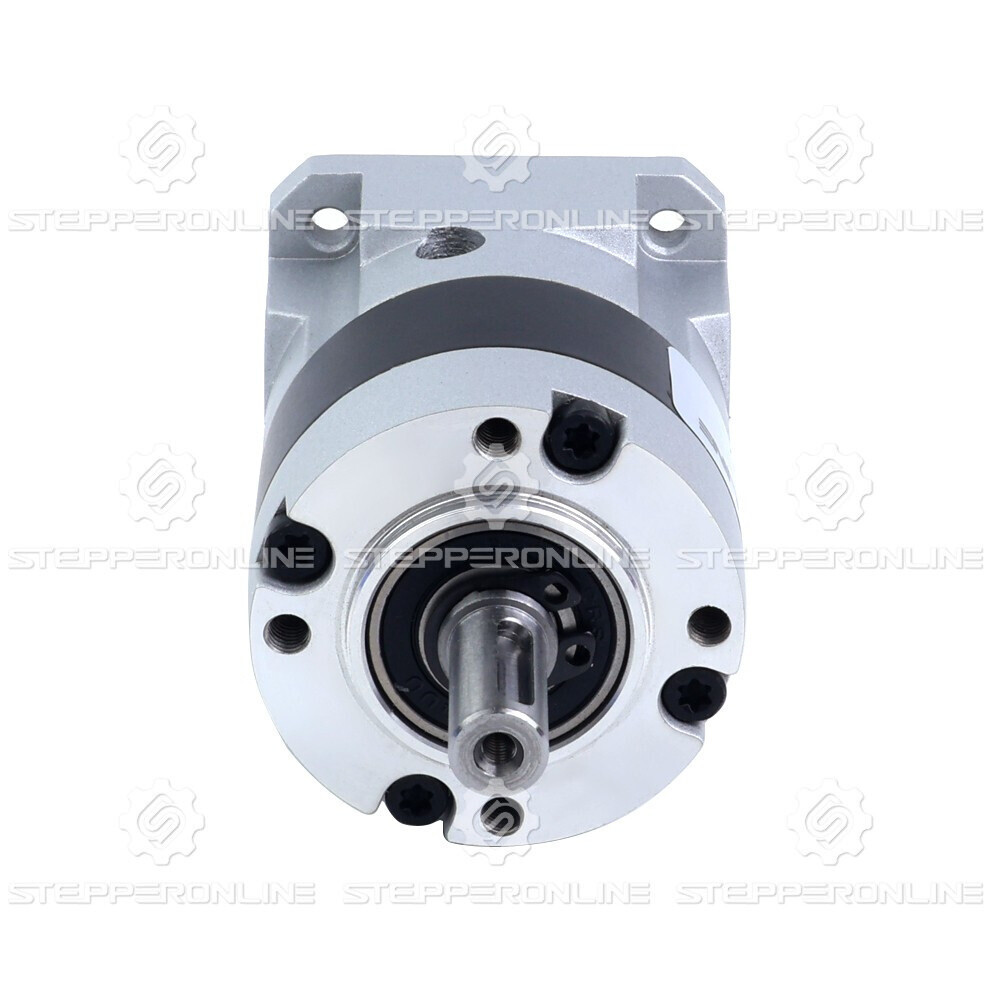

Ratio10/20:1 Planetary Gearbox 30~45arc-min for 5mm Standard Nema17 StepperMotor
USD 19.67 USD
Specifications
| Ratio | Ratio 10:1 |
| Brand | STEPPERONLINE |
| MPN | MGL17 |
| Country/Region Of Manufacture | China |
| Marke | STEPPERONLINE |
| Input Shaft Diameter | Φ5mm |
| Output Shaft Diameter | Φ8mm |
| Output Shaft Type | KeyWay |
| Gearbox Type | Spur Planetary |
| Input Shaft Length | 21.5-25mm |
| Output Shaft Length | 21.5mm |
| Waterproof Rating | IP54 |
| Shaft Maximum Axial Load | 100N |
| Shaft Maximum Radial Load | 300N |
| Rated Input Speed | 1000rpm |
Gearbox Type: Spur Planetary. Gearbox Specifications. This MGL series gearboxes are ideally suited for standard Nema 17 motors featuring a long shaft length of 21.5-25mm. Output Shaft Type: KeyWay. Maximum Input Speed: 2000rpm.
